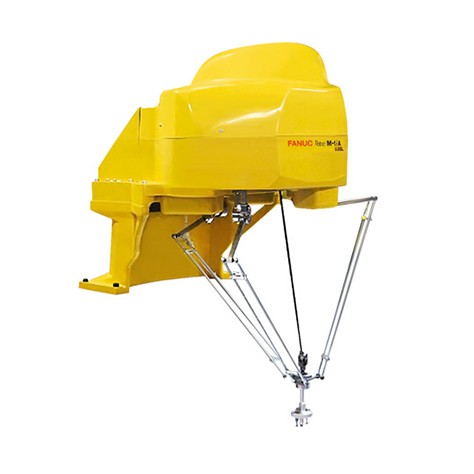

Fanuc M-1iA/0.5SL Pick-and-Place Delta Robot

Fast and Compact Robot

At just 17 kg, the Fanuc M-1iA/0.5SL Delta robot is lightest model in the Fanuc M-1 series Delta robots. With a range of mounting options, this Fanuc robot has the reach and repeatability to cover any number of tasks requiring 4-axis motioning. The Fanuc M-1iA/0.5SL Delta robot's parallel link configuration makes it ideally suited to operations requiring increased dexterity and speed.

Specifications

Max Payload: 0.5 or 1 kg

Reach: 420 mm

Axis: 4

Robot for Fast Dextrous Assembly Applications

Multiple Installation Methods
To provide even more machine fitting options, this space-saving Fanuc M-1iA/0.5SL Delta robot is available with a reversible optional stand and can also be ceiling mounted.

Unique Delta Design Mechanism
This innovative 6-axis parallel-link configuration is ideal for fast dextrous assembly applications.

Long Arm Robot
Lightweight and easy to integrate, this Fanuc M-1iA/0.5SL Delta robot is ideal for tasks that require 4-axis motioning within an extended envelope.

Payload of Up to 1,000 Grams
Cover an additional range of applications by adding another 500 grams payload.

Please contact Pro Pac or call 888-318-0083 for your robotic equipment.
