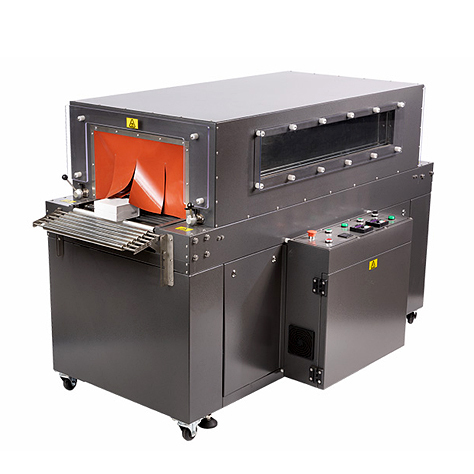

Eastey VST1710 Value Series Shrink Tunnel

Eastey VST1710 Value Series Shrink Tunnel

At a Glance

  • Live roller conveyor with silicone coated rollers provides a smooth finish
  • Conveyor speed up to 100 feet per minute
  • High velocity blower motors
  • Positive shrinking on most polyolefin, polyethylene, and PVC films
  • Heavy-duty industrial design and construction for trouble-free service and long life
Recommended
Eastey VST1710 Value Series Shrink Tunnel
Eastey VST1710 Value Series Shrink Tunnel
Eastey VST1710 Value Series Shrink Tunnel
Eastey VST1710 Value Series Shrink Tunnel
Eastey VST1710 Value Series Shrink Tunnel

High Quality Lower Cost Shrink Tunnel

Eastey Value Series Shrink Tunnels provide all the quality features found in much higher priced machines. These shrink tunnels are designed and built to give you all the performance features needed for positive shrinking of polyolefin shrink films  and match up perfectly with the Eastey VSA1825 Auto L-Sealer.

Eastey Value Series Shrink Tunnels are designed to produce superior shrinking on virtually any package. Variable speed air flow, air velocity and delayed cool down are just some of the features that provide the durability you have come to rely on from Eastey. See for yourself why Eastey has been a leader in the shrink packaging industry for over 35 years.

Standard Features

Designed to shrink most polyolefin shrink films
Live roller conveyor with silicone coated rollers provides a smooth finish
15kW heater with adjustable temperature control
Tunnel temperature range between room temperature and 365°F (185°C)
High velocity blower motors circulate air volume inside tunnel
Variable air flow and air velocity for a variety of products and applications
Tunnel window allows user to view product as it passes through tunnel and make adjustments as needed
High quality cotton insulation keeps heat inside tunnel and minimizes energy consumption
Delayed cool down and over temperature protection
Conveyor speed up to 100 feet per minute
Heavy-duty casters and leveling pads for transportation within plant
Easy-to-use design requires minimal training, maintenance, and trouble free operation
CE Certification

Please contact Pro Pac or call 888-318-0083 for your shrink equipment.

Specifications of the VST1710 Value Series Shrink Tunnel

Machine Dimensions Chamber Dimensions Conveyor Dimensions Standard Power Weight Ship Wt.
Width Height Length Width Height Length Width Length Volts Amps Phase
41.0"
(1041mm)
49.5"
(1257mm)
78.0"
(1981mm)
18.0"
(457mm)
10.0"
(254mm)
59.0"
(1499mm)
18"
(457cm)
70.0"
(1780mm)
200 30 3 800 lbs
(363 kg)
900 lbs
(408 kg)
