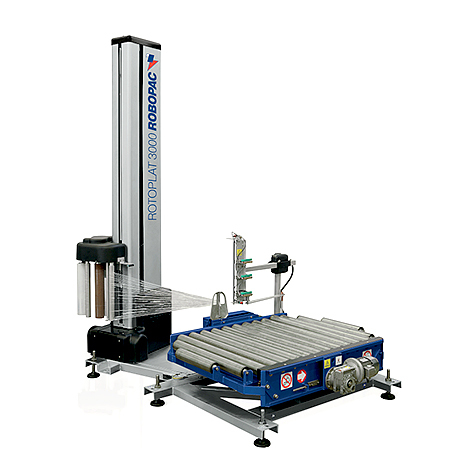

Robopac Rotoplat 3000 HD Automatic Turntable Stretch Wrapper

Ruggedly Built, High Capacity Stretch Wrapper

The Robopac Rotoplat 3000 HD heavy-duty automatic turntable stretch wrapper is engineered for operations that need reliable, high-volume wrapping in a compact footprint. Whether you're scaling up or replacing aging equipment, this stretch wrapper delivers performance that lasts.

Built to Perform
Designed for demanding environments, the Rotoplat 3000 HD combines industrial durability with smart automation. Wrap more pallets, more efficiently, with less downtime.

Benefits

• Compact footprint with high-capacity output
• Flexible configuration to match your workflow
• Durable build for industrial reliability
• Automation-ready with smart connectivity

Pre-Stretch Carriages

PGSM Carriage
The Robopac PGSM carriage system uses a single motor to pre-stretch film up to 340%, with up to 12 selectable force levels for stretch film  application on the pallet. Force containment is controlled via an analog adjustment system. The carriage is compatible with a standard 20" film roll, and can be optionally configured for a 30" roll. Additional pre-stretch kits beyond the standard configuration are also available.

PGSA Carriage
Equipped with two independent motors, the PGSA carriage allows film pre-stretch adjustment directly from the control panel, offering a stretch range from 150% to 400%. The PGSA carriage system is managed via an inverter for precise control. Up to 12 force containment levels can be applied to the pallet. Containment force is regulated by a reactive system powered by Cube Technology Level 1. The carriage supports a standard 20" roll and is available with a 30" roll.

Stretch Wrapper Clamps

Pincers Clamp
The standard pincers clamp includes a hot wire system for reliable film cutting. An optional version with dual actuators is available, allowing independent movement of the two pincers — ideal for wrapping pallets of varying sizes.

Hot Plate Sealer
The hot plate sealer device secures the final edge of stretch film  to the previous wrap during the wrapping cycle. Film is cut using a hot wire, while spring-mounted sealing plates adapt to the product's surface for consistent contact. Sealing time is adjustable via the control panel for optimal performance.

Spring Clamp
The spring clamp device secures the final edge of the film to the previous wrap during the wrapping cycle. Film is cut using a hot wire, while spring-mounted sealing plates adapt to the product's surface for consistent contact. Sealing time is adjustable via the control panel for optimal performance.

Options

Vertical Pressure Platen
Pallet retaining system during wrapping used with upper covering systems (top inside / top outside) or with particularly unstable loads. Available with mechanical movement of pantograph system or pneumatic drive.

Top Sheet Inserter
Automatic system for covering the upper surface of the pallet. Film preparation and cutting occur during the wrapping cycle, minimizing machine downtime for positioning the sheet; the production capacity is virtually unchanged. Independent support structure, therefore it can be easily installed on existing wrapping lines.

Roping
Roping system reduces the width of film to a cord and ensures a more effective stabilization of the load.

Table with Chains
The table with chain conveyor is available for loads with bottom slat pallets transversal to the feed front. Table with chain conveyor with 3, 4 or 5 ways available.
