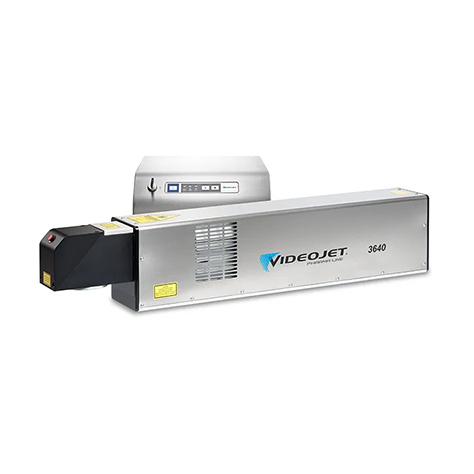

Videojet 3640 Pharma CO2 Laser Marking System
- Packaging Equipment, Machines, Systems
- Printing & Date Coding Equipment
- Markem-Imaje Inkjet, Laser, Thermal Packaging Printers
- Videojet Coding, Marking and Printing Systems
- Videojet CIJ Continuous Inkjet Printers
- Videojet Commercial Mail Addressing Printing Systems
- Videojet Laser Marking and Coding Systems
- Videojet Fiber Laser Marking and Coding Systems
- Videojet High-Performance CO2 Laser Marking and Coding Systems
- Videojet 3640 CO2 Laser Marking and Coding System
- Videojet 3640 Pharma CO2 Laser Marking and Coding System
- Videojet 3350 CO2 Laser Marking and Coding System
- Videojet 3140 CO2 Laser Marking and Coding System
- Videojet High-Performance UV Laser Marking and Coding Systems
- Videojet Case Printing Systems
- Videojet Thermal Transfer Overprinters
- Videojet Thermal Inkjet Printers
- Little David Dot Matrix and High-Resolution Case Printers
- Evolution High-Resolution Ink Jet Case Printers
- Printing & Date Coding Equipment
At a Glance
- High-speed serialization for the pharmaceutical and medical device industry
- Print speeds up to 2100 characters second
- Meets all code standards of GS1, securPharm, HIBCC, and ICCBBA
Recommended
High-Speed Serialization for the Pharmaceutical and Medical Device Industry
With print speeds of up to 2,100 characters per second and 150,000 products per hour, the Videojet 3640 Pharma Line is an ideal solution to help address highest speed serialization applications in the pharmaceutical and medical device industry.
With virtually no font, code or graphic restrictions, the 3640 Pharma laser coders meets all code standards of GS1, securPharm, HIBCC, and ICCBBA.
To facilitate GAMP 5 compliance the Videojet 3640 Pharma Line comes with IQ and OQ documentation.
3640 Pharma Benefits
Uptime Advantage Keeps Productivity Up and Costs Down
Increase throughput with 60 watts of power, optimized for high-speed and high-volume production lines.
Maximize printer availability with long-life, air-cooled laser sources that virtually eliminate maintenance intervals.
Industrial Design for High Performance
Suitable for harsh environments, where dust and humidity are a challenge and where the system is regularly washed down.
Available with an ingress protection level of IP65.
Designed for 24/7 operation in beverage, food, pharmaceutical and tobacco line.
Code Assurance
Optional CLARiTY Laser Controller offers built-in software features that help reduce operator errors and ensure products are coded correctly.
High-quality, permanent codes help assure product traceability and tamper-proofing.
High-resolution marking head delivers consistent, crisp codes.
Flexibility and Simple Usability
Compact, highest-powered laser marking system in the industry.
Easily integrate the laser marking system into production lines that have space limitations.
Largest marking field reduces the number of lasers required to cover multi-lane / wide web applications, reducing investment and running cost.
Please contact Pro Pac or call 888-318-0083 for your printing and date-coding equipment.
Specifications | |
| Specification | Value |
| Laser Tube | CO2 |
| Maximum Power | 60W |
| Laser Cooling | Air cooled |
| Maximum Print Speed | 2100 characters/sec |
| Maximum Line Speed | 15 m/sec (49 ft/sec) |
| Environmental Protection | IP54, 65 |
| Beam Output | Steered beam |
| Laser Source Expected Life | 45,000 hours |
| Laser Wavelength Options | 10.6 μm, 10.2 μm, 9.3 μm |
| Focal Distance Options | 64 mm (2.50 in) – 600 mm (23.62 in) |
| Maximum Mark Window | 601 x 440 mm (23.66 x 17.32 in) |
| Standard I/O Connectivity | Internal terminal connections |
| Optional User Interface | TCS / PC / CLARiTY Laser Controller |
| Umbilical | Detachable, 3 lengths |
| Plant Air Used | No |
| Certifications / Approvals | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
More Specifications | |
| Marking Speed | Up to 2,100 characters/sec. |
| Line Speed | Up to 15 m/sec. (49ft/sec.) |
| Marking Window | Approx. 30.8 x 38.2mm to 610.0 x 439.8mm |
| Wavelengths | 10.6μm, 10.2μm and 9.3μm |
| Marking Formats | Standard industrial fonts (Type 1 Windows TrueType) and Single line fonts Machine readable codes (OCR, 2D-matrix, etc.) Bar codes: BC25, BC25i, BC39, BC128, GS1-128, EAN13, UPC_A, RSS14, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omnidirectional, RSS Limited, RSS Expanded, etc. Graphics, logos, symbols, etc. Linear, circular, angular, reverse, rotate Sequential and batch numbering Automatic date, layer and time coding; real-time clock Dot mode enables marking 2D codes faster than traditional grid mode |
| Laser Tube | Sealed CO2 laser, power class 60-Watt |
| Laser Beam Deflection | Steered beam with digital high-speed galvanometer scanners |
| Focusing | Focal lengths: 64/ 95/ 127/ 190/ 254 mm (2.5/ 3.75/ 5.0/ 7.5/ 10.0 inches); 63.5/ 85/ 100/ 150/ 200/ 300/ 351/ 400 mm (2.50/ 3.35/ 3.94/ 5.9/ 7.87/ 11.8/ 13.8/ 15.75 inches); 100/ 150/ 200/ 300/ 351 mm (3.9/ 5.9/ 7.9/ 11.8/ 13.8 inches); 400/ 500/ 600 mm (15.75/ 19.68/ 23.62 inches) |
| Operator Interface Options | Handheld controller PC software TCS Touch Control Software CLARiTY Laser Controller Smart Graph Com |
| Language Capabilities (with CLARiTY Laser Controller) | Arabic, Bulgarian, Czech, Danish, English, German, Greek, Finnish, French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Simplified Chinese, Slovak, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Vietnamese; interface dependent. Additional languages available with Smart Graph software |
| Communication | Ethernet, TCP/IP and RS232 optional Inputs for encoders and product detector triggers 16 inputs / 11 outputs for start/stop signals, machine/operator interlocks, alarm outputs; in addition to the safety circuits Customer-specific solution available |
| Integration | Direct integration into complex production lines via scripting interface Flexible beam delivery options (beam extension unit/ beam turning unit) Detachable umbilical for simple integration; available in 3 lengths |
| Electrical Requirements | 100-240 VAC (autorange), ~50/60Hz, 1PH, 1.15KW |
| Cooling System | Air cooled |
| Environment | Temperature 40-105° F (5-40° C) Humidity 10%-90%, non-condensing |
| Sealing and Safety Standards | Supply unit: standard IP54, optional IP65 Marking Unit: IP54, optional IP65 Optional safety module provides Performance Level d (PFL-d) in accordance to EN 13849-1 IEC/EN 60825-1:2014 |
| Weight | Supply unit: IP54/IP65 25.4lbs (11.5kg) Marking unit: IP54 58.4lbs (26.5kg); IP65 59.5lbs (27kg) |
| Applicable Certifications | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
Please contact Pro Pac or call 888-318-0083 for your printing and date-coding equipment.
