At a Glance
- High-resolution printing on primary and secondary packaging
- Large CLARiTY touchscreen interface for easy operation
- Prints basic alphanumeric codes to complex bar codes and graphics
Recommended
Thermal Inkjet Printing for Industrial Applications

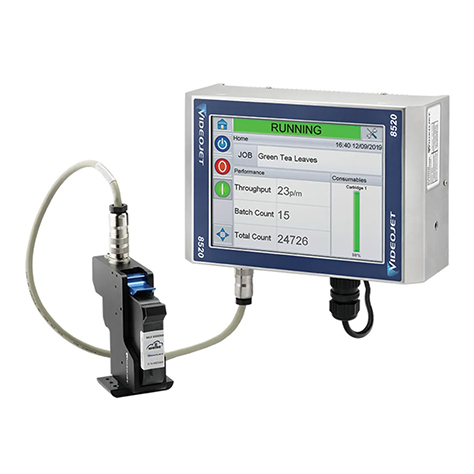

Videojet 8520 and Wolke m610 touch thermal inkjet (TIJ) printers use HP technology for high-resolution printing on primary and secondary packaging.
These versatile Videojet printers feature a large CLARiTY touchscreen interface for easy operation and provide a familiar look and feel to those who use Videojet CLARiTY-based printers. From basic alphanumeric codes to complex bar codes and graphics, the 8520 and m610 touch have the capability to print a wide range of codes on fast production lines.
Benefits
- Simple Operation
- The 8.4 inch color touchscreen interface with easy to learn, icon based, controls.
- Clean operation with genuine HP ink cartridge , virtually eliminating spills and mess.
- Simple code selection and customer selectable rules prevent human error; all common functions accessed in five or fewer touches.
- Uptime Advantage Saves Money
- No wear items or replacement parts outside of inkjet cartridge replacement.
- Simple cartridge changes can occur in less than one minute, with no specialized training.
- High Speed, High Resolution Printing
- Print 600 x 600 dpi high resolution codes up to 50.8 mm (2 in) in height.
- Wide range of bar codes including DataMatrix and stacked symbologies.
- Maximum line speed of up to 75 m/min (250 ft/min) when printing at exceptional print quality of 600 x 240 dpi (higher line speeds are possible at lower horizontal print resolutions).
- Ideal for Packaging Line Integration
- The small footprint and industrial design is easy to integrate into existing production lines.
- Integrate printer via webserver functionality for remote control from third party HMI displays.
- Data interfaces include TCP/IP, RS232, USB, ZPL and Text communication.
- Advanced communication protocol for remote operation and high speed serialization.
- Supports both text and binary communication and offers select emulation of ZPL (Zebra Programming Language).
Please contact Pro Pac or call 888-318-0083 for your printing and date-coding equipment.
Specifications | |
| Maximum Print Resolution | 600 x 600 dpi |
| Print Speed | 1.5 – 109 m/min (5 – 360 ft/min)(at 600 x 240 dpi) |
| Bar Codes | Multiple linear and 2D bar codes available including DataMatrix |
| Print Height (single printhead) | 12.7 mm (0.5 in) |
| Maximum Number of Printheads | Up to 4 |
| User Interface CLARiTY | 8.4 inch color SVGA LCD touch-panel |
| Data Interfaces | RS232, Ethernet, USB memory, select ZPL command emulation, Text communication |
More Specifications | |
| Print Speed | Bar code printing – 0.6 to 66mpm (2.0 to 216ft/min) Alphanumeric text – up to 132mpm (433ft/min) Speeds are density dependent |
| Print Distance | 0.5mm to 4.0mm max (0.02 - 0.15") |
| Print Area(per printhead) | 70mm (H) x 2000mm (L) (2.8" x 78"), 180 dpi |
| Bar Codes | UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128; Code 39; Interleaved 2 of 5; RSS/GS1 Databar (including 2D composite codes); DataMatrix; QR codes |
| User Interface | 8" high-response TFT-LCD touch screen WYSIWYG touch to edit message editing On-board diagnostics |
| Graphics, Images and Logos | Created via optional CLARiSOFT software |
| Printing Capabilities | Full downloadable font support using TrueType fonts (including multiple languages and Unicode support); fixed, variable and merged text fields; flexible date/time formats; flexible shift code formats; auto best before date calculations and concession management; calendar rules; auto incrementing decrementing text, counters and bar codes; multiple graphic formats supported (up to maximum print area); link fields to databases; scalable text and text blocks |
| Languages | English, Arabic, Bulgarian, Chinese (Mandarin), Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Turkish and Vietnamese |
| On-Board Memory | 8 GB memory |
| Inputs / Outputs | 1 product detect input, 1 DB15 interface integrated shaft encoder input, job select inputs, 24VDC output, 3 configurable inputs, and outputs for driving relay control or beacon 1 DB9 interface for sharing product detect and encoder signal between printers 1 USB 2.0 host |
| Supported Field Types | Fixed, variable (user entered), merged, database, counters, date, offsets, time, paragraph (text blocks) Basic shape drawing (circles, rectangles etc.) |
| External Communications | Binary and ASCII comms protocols Host PC mode (Remote Database) using CLARiNET Zebra (ZPL) protocol USB connectivity for job download and software update |
| Connectivity Options | RS232, dual Ethernet and Wi-Fi |
| Operation Modes | Single printhead in standard mode, two printheads in leader/follower mode |
| Network Control Software | CLARiNET network management software |
| Ink/Ink System | Non-pressurized, screw-in canister; 175ml or 365ml Colors available: black, blue, green, orange, purple, red, yellow |
| Power Supply | 100V-240VAC, 50/60HZ, 50W |
| Air Supply | 6 Bar, 90psi, dry, uncontaminated |
| Operating Temperature | 10°-35° C (50°-95° F) |
| Weight(single head) | Unboxed: 3.75kg (8.3lbs) Boxed: 7.4kg (16.3lbs) |
| Options | SIMPLCiTY Workflow Modules Wide range of accessories |
Please contact Pro Pac or call 888-318-0083 for your printing and date-coding equipment.
