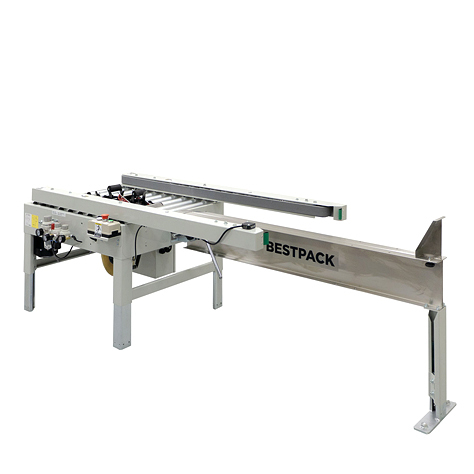

BestPack RSBFT Random Side Drive Flap Folder
- Packaging Equipment and Machines
- Case Tapers
- Little David Case Tapers
- BestPack Case Tapers
- BestPack Fully-Automatic Random Case Tapers
- BestPack Adjustable Fully-Automatic Uniform Case Tapers
- BestPack Manual Random Case Tapers
- BestPack RS Random Side Drive Case Taper
- BestPack RS-6 6-Inch Random Side Drive Case Taper
- BestPack RS-S Stainless Random Side Drive Case Taper
- BestPack RSL Random Side Drive Low Profile Case Taper
- BestPack RSL-6 6-Inch Random Side Drive Low Profile Case Taper
- BestPack RSBFT Random Side Drive Flap Closer
- BestPack RS20 Manual Bottom Only Random Case Taper
- BestPack RQ Random Quad Drive Case Taper
- BestPack Adjustable Manual Uniform Case Tapers
- BestPack Case & Carton Indexers
- Pearson Case Sealers
- A-B-C Case Sealers
- Eastey Case Tapers
- Case Tapers
At a Glance
- Quickly tape random carton bottoms
- Side belt drive
- T rail with bottom major flap folding horns
- Up to 10 cases per minute
Buy your case sealing tape from Pro Pac, and get a discount on this BestPack case taper!
Click to enlarge
Side Belts Seal a Wide Variety of Cartons
The BestPack RSBFT random operator-fed, bottom carton sealer is designed to reduce the time required to fold and seal the bottom flaps of a carton.
This RSBFT bottom-only taper is perfect for when carton-forming volume has become too large to manually form and tape cartons, but not large enough to justify a fully-automatic carton erector/sealer.
The RSBFT line incorporates 2" or 3" pop-out pressure-sensitive high-speed tape heads with BestPack's patented tab adjustment.
All BestPack units are available in standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.
Features
- 2 side belt drive.
- Random bottom flap folder.
- T rail with bottom major flap folding horns.
- Adjustable Bed Height from: 23.5" to 30.0".
- Tape roll lengths: 1000 yd, 1500 yd, 2000 yd.
- Heavy-duty 2mm CNC cut and welded frame including upper welded legs.
- Quality UL approved electrical parts.
- Capable of interchanging 2" or 3" tape heads.
- Heavy-duty maintenance-free oil-less air cylinder.
- High-speed motors.
- Exclusive 2" or 3" pop-out pressure sensitive high-speed tape head with patented tab adjustment and noise reduction arm.
Options
- Food grade 304 stainless steel
- Spare parts kit
- Exit conveyors
- Locking casters with support brackets
- Spare tape head
Power & Air
- Power: 110 Volts, 60 Hz
- Air: 55-80 psi, 5 scfm
Please contact Pro Pac or call 888-318-0083 for your case sealing equipment.
Specifications | |||||||
| Model | Machine Dimensions | Case Length | Case Width | Case Height | Conveyor Height | Cases per Minute | Shipping Weight |
| RSBFT20-2H 2" Tape Head | 95.9"L 35.5"W 29.4"H | 7.8" - 23.6" | 7.8" - 19.6" | 4.0" - ∞" | 23.5" - 30.0" | Up to 10 | 350 lbs |
| RSBFT20-3H 3" Tape Head | 95.9"L 35.5"W 29.4"H | 7.8" - 23.6" | 7.8" - 19.6" | 4.0" - ∞" | 23.5" - 30.0" | Up to 10 | 350 lbs |
Please contact Pro Pac or call 888-318-0083 for your case sealing equipment.
