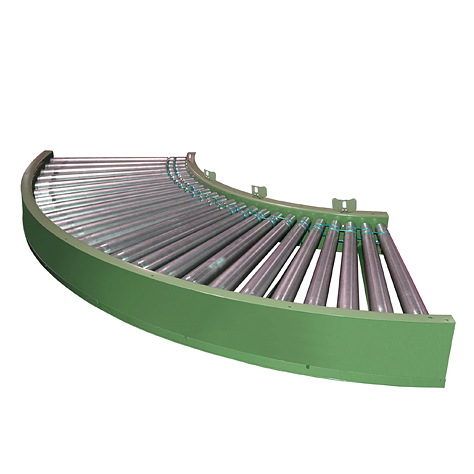

Roach 596PRAC Photoeye Controlled Curve Powered Roller Conveyor
At a Glance
- Motorized rollers drive the conveyor
- Rollers set high in frame
- No need for drive belts, chains or line shafts
- 18 inch and 30 inch zones available
Curve Conveyor with Motorized Rollers
The Roach 796PRA powered roller accumulator conveyor revolutionizes the automated conveyor industry. Motorized rollers drive the conveyors eliminating the need for drive belts, chains or line shafts.
Specifications
- Tread Rollers: 2-1/2" dia. to 1-11/16" dia. x 14 ga. steel tapered rollers, model 254T.
- Drive Belt: 3/16” dia., polyurethane belts. Nominal 15 lbs. per roller drive.
- Capacity: 15 lbs. per roller or up to 70 lbs. per zone.
- Speed: 60 FPM, constant.
- Roller Centers: 3"
- Bed: 5" x 1-3/4" x 10 ga. formed steel channel frame. Rollers set low in frame.
- Accumulation: Zone singulation operation; 24" zone length; zones are actuated using a photoeye.
- Motor Drive: Indirect driven by 24 VDC powered roller.
- Bearings: Precision ABEC bearings.
- DC Power Supply: 24 volt fixed output required.
Options
- Accumulation Zones: 18" and 30" long zones available, depending on roller centers.
- Floor Supports: Supports, knee braces, casters and polytier supports available.
- Conveyor Speed: Constant speed 34-260 FPM
- Ceiling Hangers: 5/8" dia. threaded rod with hardware to attach rods to conveyor. Provides 6' clearance between ceiling and TOR (furnished in place of floor supports).
- Diffuse Photoeye: Photoeyes mounted below the tread rollers.
- Bed: Control side 7" x 1-3/4" x 12 ga. formed steel channel frame. Rollers set low in frame. Outside channel 5" x 1-3/4" x 10 ga. formed steel channel frame. Rollers set high in frame.
Please contact Pro Pac or call 888-318-0083 for your conveyors.
Zones and Amperage |
Zones | AMP |
1 - 2 Zones | 6 AMP |
3 - 8 Zones | 10 AMP |
9 - 17 Zones | 20 AMP |
18 - 26 Zones | 30 AMP |
27 - 36 Zones | 40 AMP |
Roach 596PRAC Conveyor 90 & 60 Degrees and Rollers |
Degree | 90° | 60° |
BF | OAW | Inside Radius | Wt. (lbs) | IR/RC OR/RC | Tapered Rollers | Drive Roller Qty | Zone Qty | Wt. (lbs) | IR/RC OR/RC | Tapered Rollers | Drive Roller Qty | Zone Qty |
15" | 18.5" | 32.5" | 229 | 2.84" 4.15" | 18 | 2 | 2 | 180 | 2.84" 4.15" | 12 | 2 | 1 |
19" | 22.5" | 32.5" | 280 | 2.84" 4.49" | 18 | 2 | 2 | 206 | 2.84" 4.49" | 12 | 2 | 1 |
21" | 24.5" | 32.5" | 305 | 2.84" 4.67" | 18 | 2 | 2 | 210 | 2.84" 4.67" | 12 | 2 | 1 |
25" | 28.5" | 32.5" | 355 | 2.84" 5.02" | 18 | 2 | 2 | 238 | 2.84" 5.02" | 12 | 2 | 1 |
27" | 30.5" | 32.5" | 381 | 2.84" 5.19" | 18 | 2 | 2 | 250 | 2.84" 5.19" | 12 | 2 | 1 |
33" | 36.5" | 48" | 456 | 2.90" 4.89" | 26 | 3 | 3 | 323 | 3.14" 5.30" | 17 | 2 | 2 |
39" | 42.5" | 48" | 532 | 2.90" 5.26" | 26 | 3 | 3 | 370 | 3.14" 5.69" | 17 | 2 | 2 |
Roach 596PRAC Conveyor 45 & 30 Degrees and Rollers |
Degree | 45° | 30° |
BF | OAW | Inside Radius | Wt. (lbs) | IR/RC OR/RC | Tapered Rollers | Drive Roller Qty | Zone Qty | Wt. (lbs) | IR/RC OR/RC | Tapered Rollers | Drive Roller Qty | Zone Qty |
15" | 18.5" | 32.5" | 169 | 2.84" 4.15" | 9 | 1 | 1 | 146 | 2.84" 4.15" | 6 | 1 | 1 |
19" | 22.5" | 32.5" | 200 | 2.84" 4.49" | 9 | 1 | 1 | 169 | 2.84" 4.49" | 6 | 1 | 1 |
21" | 24.5" | 32.5" | 216 | 2.84" 4.67" | 9 | 1 | 1 | 180 | 2.84" 4.67" | 6 | 1 | 1 |
25" | 28.5" | 32.5" | 247 | 2.84" 5.02" | 9 | 1 | 1 | 202 | 2.84" 5.02" | 6 | 1 | 1 |
27" | 30.5" | 32.5" | 262 | 2.84" 5.19" | 9 | 1 | 1 | 214 | 2.84" 5.19" | 6 | 1 | 1 |
33" | 36.5" | 48" | 309 | 2.90" 4.89" | 13 | 2 | 1 | 247 | 3.14" 5.30" | 9 | 1 | 1 |
39" | 42.5" | 48" | 355 | 2.90" 5.26" | 13 | 2 | 1 | 281 | 3.14" 5.69" | 9 | 1 | 1 |
Please contact Pro Pac or call 888-318-0083 for your conveyors.
