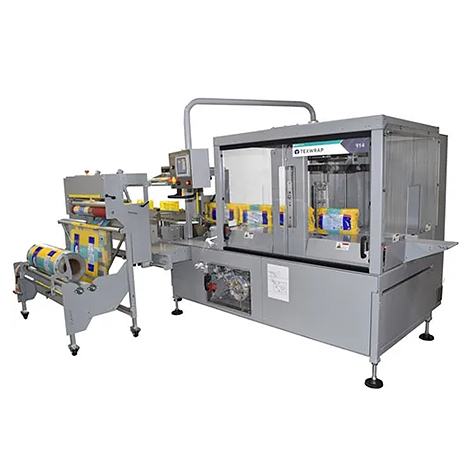

Texwrap OVS Orbital Vertical Seal Shrink Bundling Equipment

Quickly Bundle Products in a Vertical Position

Texwrap OVS vertical seal systems are ideal for end-of-filling-line shrink packaging. Bottles, cans and jars can be wrapped while in the vertical position.

The OVS machines use a full top trim seal instead of a lap seal to securely enclose the product. In addition to providing an outstanding seal, OVS vertical seal systems eliminate the unsightly seam across the side panel of the package common with other machines.

Often used to multi-pack for retail sale, the precise product and film  control of Texwrap OVS vertical systems allow high-speed operation with precise print registration.

Combine with an automatic label positioning system to orient labels in a multi-pack to face precisely the same direction.

Servo Orbital-Motion Sealing Head

Texwrap's patented servo orbital-motion sealing head eliminates the need for the head to move with the product while the seal is being made. This sealing process dramatically increases the throughput speed of the wrapper.

Texwrap OVS vertical seal systems can vary the exit conveyor speed. This capacity allows the conveyor to be slowed momentarily as the seal is being made to relieve tension on the film for superior seals while using the absolute minimum amount of film.

Integrated Generation 3 Servo Technology

Texwrap shrink wrapping systems are designed to integrate Generation 3 servo technology, PLC control, and the mechanical elements of the machine. The result is a fast, reliable, and flexible wrapper with minimal moving parts, minimal maintenance requirements, and maximum performance.

Features & Benefits

• Patented orbital seal system delivers highest rate of speed at continuous operation.
• Patented versa seal bottom trim seal technology.
• 5-axis servo controlled seal jaws allows operation at a higher rate and still maintain consistent, precision seals.
• Full bottom trim seal to securely enclose the product.
• Eliminates the unsightly side seal across the side panel of packages common in other machines.
• Precise product and film control allows high-speed operation with precise print registration.

Texwrap Orbital Vertical Sealers

OVS-514
The Texwrap OVS-514 has a max product size of 6"W x 14"H and operates with a film speed of 200 feet per minute and up to 135 cycles per minute depending on product and film type.

OVS-914
The Texwrap OVS-914 has a max product size of 9"W x 14"H and operates with a film speed of 200 feet per minute and up to 135 cycles per minute depending on product and film type.

OVS-1418
The Texwrap OVS-1418 has a max product size of 14"W x 18"H and operates with a film speed of 200 feet per minute and up to 135 cycles per minute depending on product and film type.

OVS-1425
The Texwrap OVS-1425 has a max product size of 14"W x 18"H and operates with a film speed of 200 feet per minute and up to 135 cycles per minute depending on product and film type.
