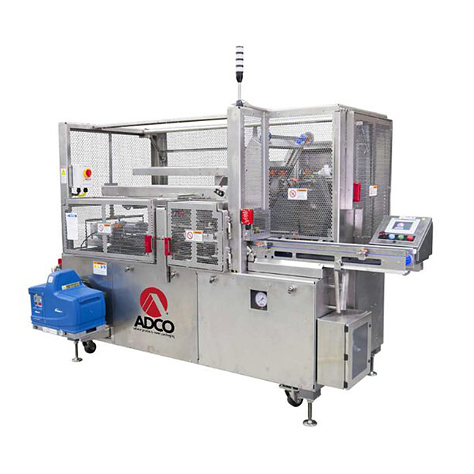

Adco IALS Horizontal End Load Cartoner Stacker

Adco IALS Horizontal End Load Cartoner Stacker

At a Glance

  • Meets strict dairy industry standards
  • Automatically stacks and loads grouped product into cartons
  • Simple to operate, ergonomically friendly, easy to maintain
Sustainability Tip

Buy your cartons from us, and get a discount on this Adco carton former!

Click to enlarge

Adco IALS Horizontal End Load Cartoner Stacker Adco IALS Carton Style

Compact Cartoner Designed for Pharmaceutical, Cosmetic, and Personal Care Products

The Adco IALS is a compact, fully automatic horizontal end load cartoner. Originally developed to run ice cream sandwiches for the dairy industry, the intermittent motion IALS can be easily adapted to a variety of applications.

At the heart of the IALS is its unique product stacking and loading system. Products are fed into the IALS at random in the broadside-leading configuration and the IALS automatically stacks and loads the grouped product into the awaiting cartons. Featuring multi-axis servo-control and construction that meets strict dairy industry standards, the reliable IALS is ideal for the most demanding production environments. The simple to operate, ergonomically friendly and easy to maintain IALS is the perfect addition to your packaging line.

Like all Adco machines, the IALS is available in both standard and washdown configurations.

Benefits

Stainless steel construction improves clean-ability and eliminates corrosion
Unique, adjustable product stacker and loader maximizes flexibility and protects investment
Pick and place carton feeder ensures smooth,efficient operation
Fast, easy changeover with digital indicators on all adjustments reduces downtime
Compact frame with leveling feet and casters saves space and maximize portability
Advanced guard design keeps operators safe and maximizes maintenance access

Features

Stainless steel with severe duty washdown construction
Intermittent motion, multi-axis drive system
Compact frame with leveling feet and casters
Horizontal powered easy-to-load carton magazine
Easy to adjust product stacker and loader
No product/no carton, no carton/no load sensing
Powered side discharge belts and unloaded product chute
Nordson ProBlue hot melt glue system
Allen-Bradley control package with touch screen HMI interface
Category 3 safety system with fully-interlocked barrier guard package
PackML programming
Many options available upon request

Options

Washdown construction
Mechanical or servo control
Tuck or glue style cartons
Additional infeeds
Multiple indexers
Multiple feeders
Open major flap detect
Marking and coding systems

Applications

Ice cream bars
Flow-wrapped products
Snack foods
Baked goods
Frozen foods

Carton Size Range

Length of Opening: 1" to 9" (25 to 229mm)
Width of Opening: 0.75" to 4" (19 to 102mm)
Carton Depth: 4" to 12" (102 to 305mm)

Specifications

Electrical: 230/460 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air: 10 CFM @ 95 PSI

Please contact Pro Pac or call 888-318-0083 for your cartoning equipment.
